I saw an article on the Guardian website here on the 3D-printing of shapes which project interesting patterns of light. Ignoring the strangely forced Halloween reference, I thought this would be an interesting project to attempt for an arbitrary pattern, perhaps as a personalised lampshade. Buoyed by the continuing high of leftover sweets from Friday night, let’s have a look.

Much like the guys in the article linked above, we want to take a projected image and work backwards to see what kind of shape can be projected to form that image. For simplicity, lets assume the image is formed by placing a light source at the top of a sphere of radius as depicted below. This sphere has some holes cut into it which project light into a plane a distance below. The image on the plane is then the stereographic projection of the image on the sphere. We will need to work backwards – given a projected image with coordinates , can we work out the pattern of shapes cut into the sphere?

Obviously we can only make black-and-white images using this technique, though it would be interesting in the future perhaps to consider a sphere made of transparent printed plastic (for example) which projects a colour image.

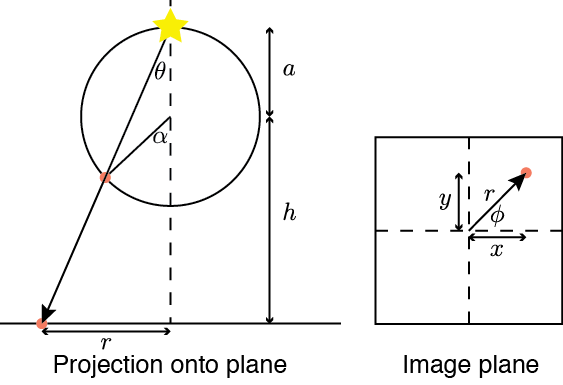

A coordinate on the image plane can be represented in polar coordinates . The ray from the light source to this point then propagates at angle

and with some elementary geometry we know that this ray intersects the sphere at an angle . With a new coordinate system centred at the centre of the sphere, the image coordinates are mapped to new coordinates

This is all the simple maths required (though of course this is an interesting topic to examine more deeply), the rest is getting an image into the correct format.

As an example, let’s use the following pleasant flowery image from Google image search:

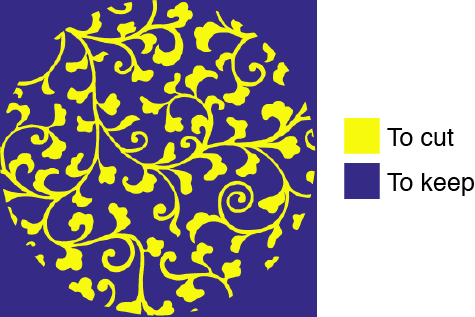

The first step is to binarise the image, and figure out which parts we want to keep and which we want to cut out to form the holes in our lampshade. Here it’ll look best if we cut the black parts out, so the lamp projects a nice flowery pattern. To avoid any funny edge effects I’ll crop the pattern to a circle, and so our ‘mask’ is drawn below, along with the relevant snippet of Matlab.

P = imread('Pattern.png'); P = 1-im2bw(P); % Keep black parts Nmin = min(size(P)); % Crop into square, then circle P = P(1:Nmin, 1:Nmin); [xg, yg] = meshgrid(1:Nmin, 1:Nmin); P((xg - Nmin/2).^2 + (yg - Nmin/2).^2 > 0.99*0.25*Nmin^2) = 0; % Create a small border P = padarray(P, [1 1], 0);

Now, this is a bitmap image and we will eventually need something 3D-printable, i.e. in vector format. I need to go through each of these holes and trace a contour around it. First, however, I need to isolate each hole separately. There is, as always, a useful inbuilt function just for this purpose which identifies distinct white regions of a monochrome image and which pixels they correspond to. In the snippet below I loop through these regions and create a new image containing a single hole. Before I make the contour I smooth the image slightly to avoid any ‘staircasing’ of the contour line.

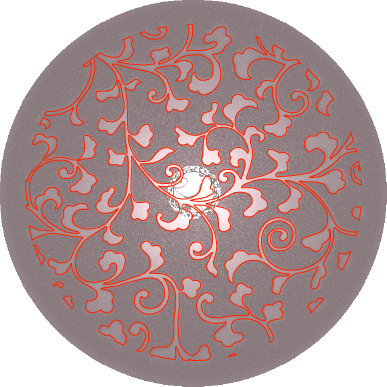

CC = bwconncomp(P); for n = 1:CC.NumObjects % Create new image for each hole newP = zeros(size(P)); newP(CC.PixelIdxList{1,n}(:)) = 1; % Smooth image slightly newP = filter2(fspecial('average',3),newP); % Get contour around hole C = contourc(newP,[1 1]); end

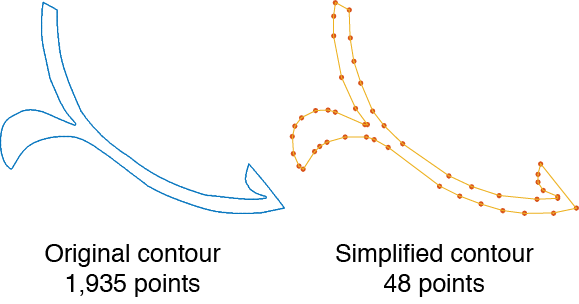

There is one more thing to consider if we want decent performance, and that is the resolution of the contour. Matlab will quite happily produce an extra contour line for each pixel, which is much more than we need. We can apply the Douglas-Peucker line simplifcation algorithm to each hole to drastically reduce the number of segments, using the File Exchange submission here. As illustrated below, we can reduce the number of points in each contour drastically without significantly worsening the image.

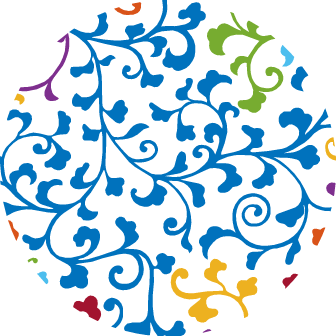

Inserting this into the loop above, we get the vectorised, simplified, segmented holes which are plotted below and coloured separately. In this case there is one large hole and a few smaller ones.

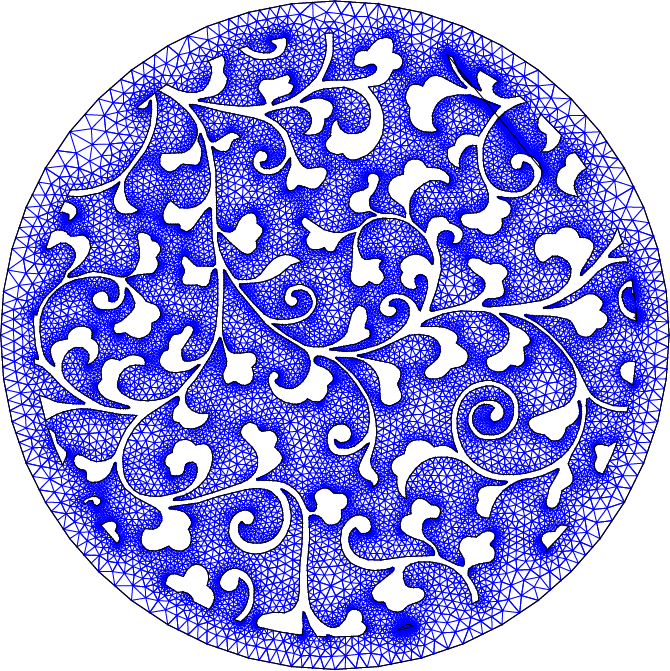

This is great so far but at the moment we only have the outlines of the holes, we now need to fill in the blanks. The boundary of our lampshade is a simple circle, and the holes inside are a series of complicated contours. Fortunately, this kind of problem has been solved many times before. In the field of finite element analysis a potentially complex domain needs to be discretised into a mesh for numerical computation. Here I borrow the extremely useful submission Mesh2D from the File Exchange again, which will happily crunch through the boundaries I’ve defined and generate a mesh. This function is remarkably easy to use, so there isn’t much to say about it – it just requires a list of vertices and edges.

Now it should be clear why I was worried about the number of elements in the contour lines – each line segment forms the side of a triangular mesh element. If the contours contained many times more segments, the mesh would become very dense and slow to generate.

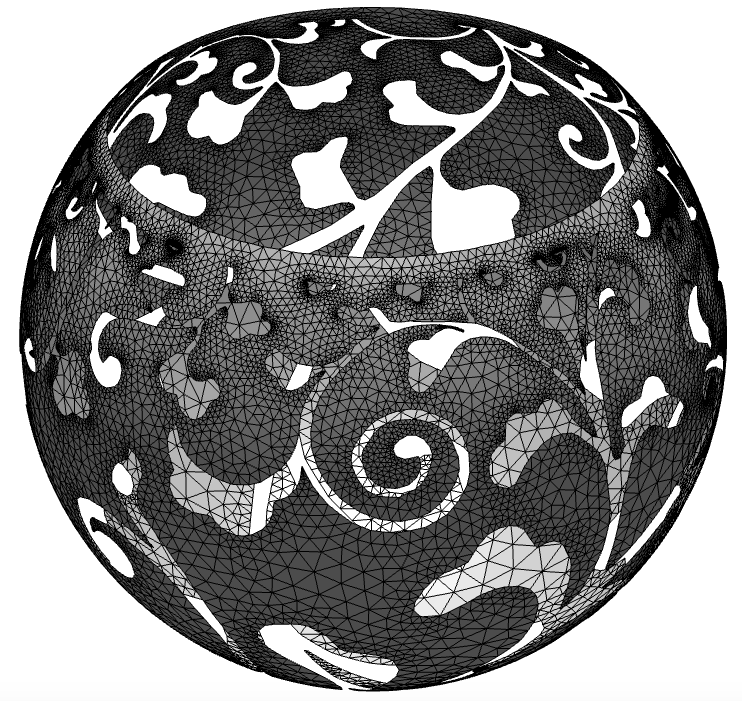

Happily we’re almost there now, it just remains to warp this mesh into the form required. As each mesh element is a triangle, we can move the three corners wherever we like and they will still lie on a plane together, so there is no need to re-mesh. For each vertex we apply the transformations listed above, and pack the faces and vertices into a Matlab patch object:

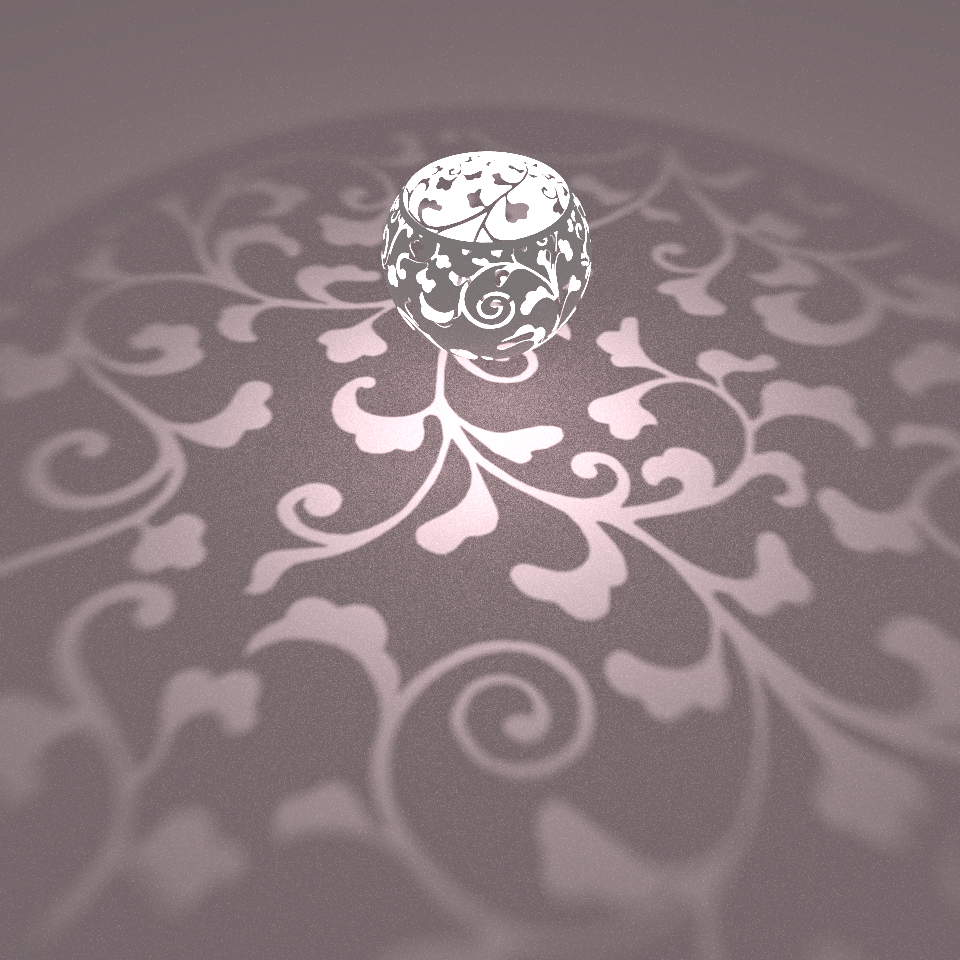

Nice! This looks pretty, but is it correct? And could it actually be printed? To go further, I take this mesh and import into Blender. Here I can solidify the mesh to create some physical thickness, and add a light source in the right place to check the stereographic projection.

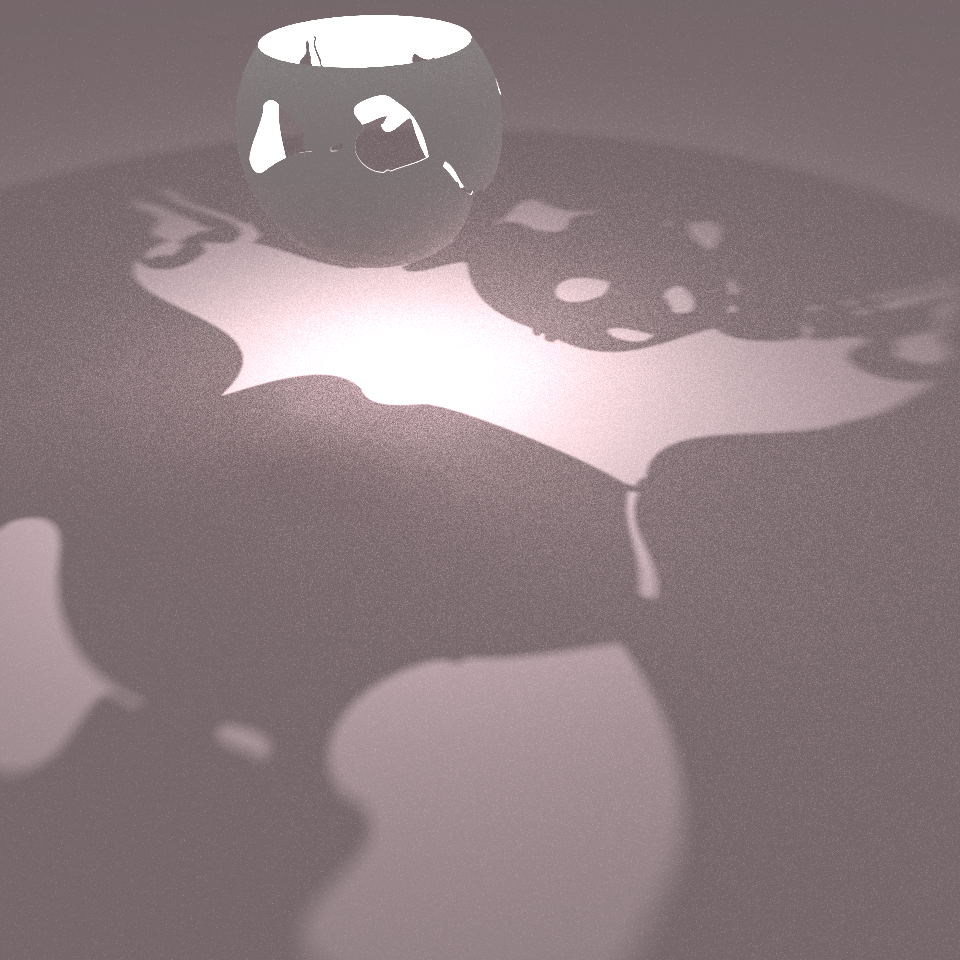

Poor-quality render aside, this looks good. The blurring is due to the finite size of the light source rather than any depth-of-field I’ve added. If we compare the image from above and the original contour lines, we see that the stereographic projection is correct, and the original image is reproduced.

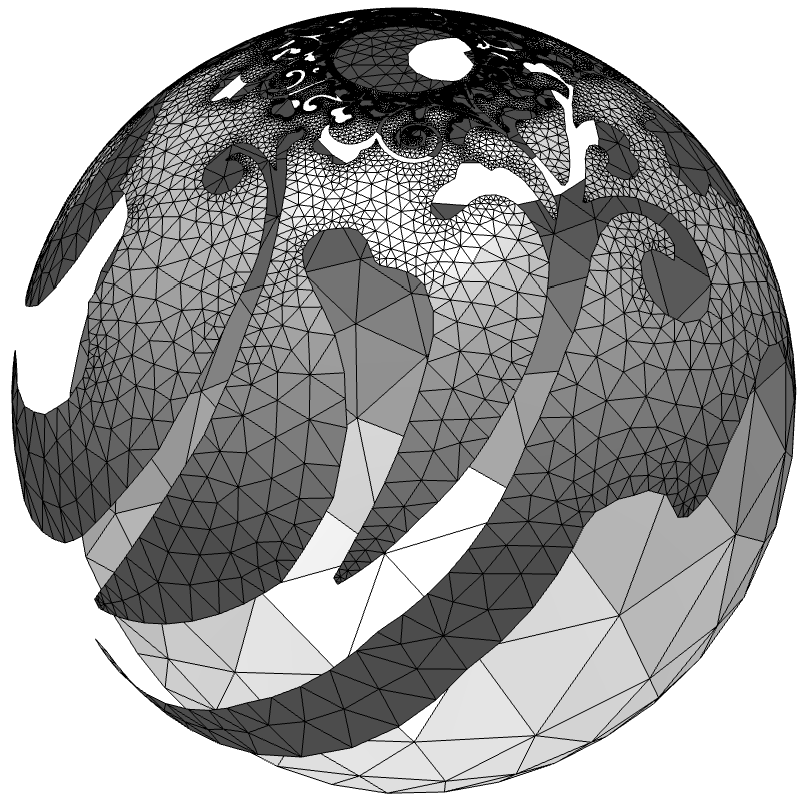

This is great, and now we know everything works we can explore a little. What if we fix the size of the image but change the size of the lampshade?

In the small-image-size limit the projection is just a simple linear projection, and the lampshade is reduced to a simple circle.

What about some different patterns? Turning again to Google image search we can do a geometric pattern:

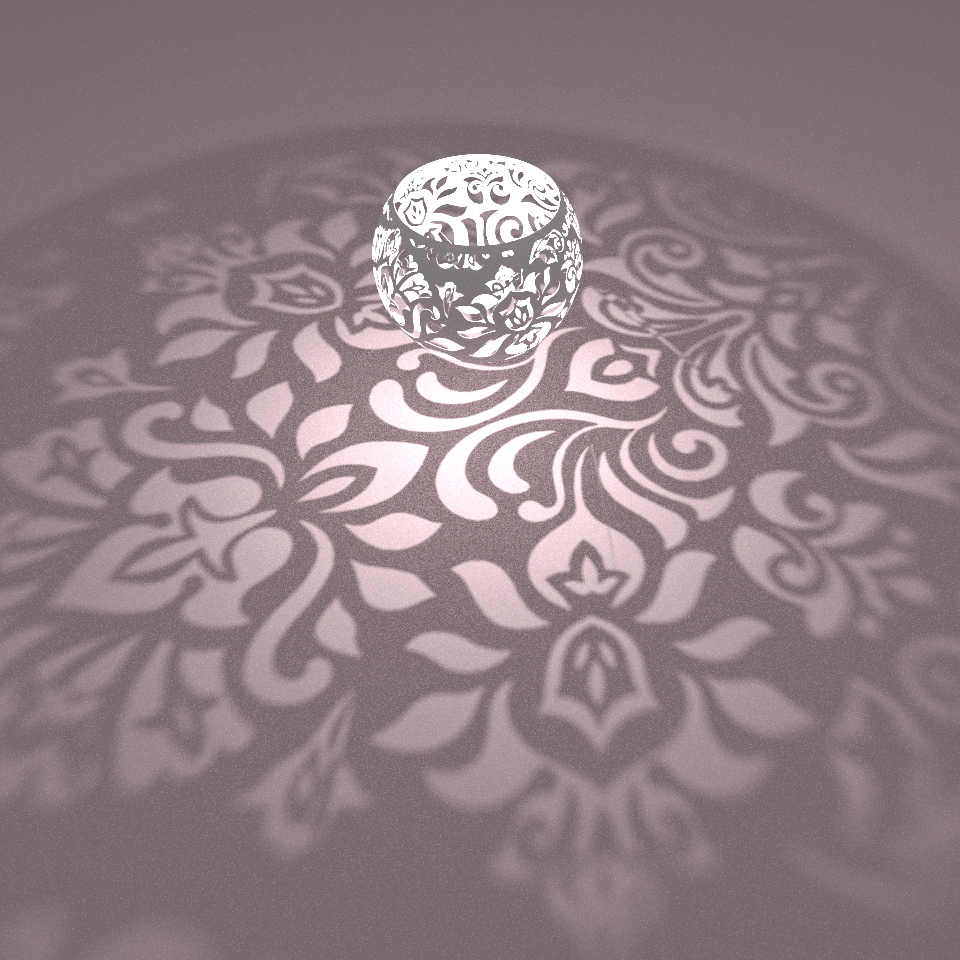

Or perhaps a lamp to replace your wallpaper (this one isn’t strictly possible to make…):

Finally, as a Bristolian at heart, how could I not include a stencil from the worlds favourite graffiti artist (edit: as pointed out on Hacker News, this isn’t actually a Banksy! The shame. It is authentic Bristolian graffiti though so I’ll let it stand). This might also be the first time ever that a panda bear has been meshed with an FEA mesher…

If you’d like to play with these meshes yourself, the .blend file containing the models above can be found here. You should be able to export to .stl files if you’d like to 3D print anything – if you do, let me know! I don’t have access to a printer here.

**Update: **Below in the comments, Aleksi has printed the panda lampshade with great results! Here’s one of the pictures of it in action:

I’ve not got a 3D printer, so I wonder how easy this would be to project from a cube instead of a sphere. Then the lamp shade could be made from five sheets of card instead. Might not be as pretty as the spherical lamp shades though!

LikeLike

Not a bad idea! The simplest way would be to initially partition the image into 5 pieces which individually map to a square face of the cube, and adjust the warping procedure slightly for each one. I might give this a go in the future as I really want to get something physical to play with – thanks for the idea.

LikeLiked by 1 person

Hi,

i came across this site the other day:

http://www.fubiz.net/2016/07/19/using-maths-to-create-artistic-shadows/

and wanted to know more about the math and the technique, so i came to your page.

I think something like this would be much more easier to make than a 3D-printed sphere:

But i’m not quite into the math, what do you think – is it feasible with reasonable effort?

LikeLike

Thanks for the link! That looks like a fun idea, pretty much the same as these spherical designs but using flat sections. The problem boils down to calculating the shape of a shadow projected through a hole by a point source, which is something called a ‘projective transformation’ (it requires a bit of matrix manipulation). One thing you could do is create the right pattern by experiment – perhaps drawing on a transparent piece of paper with a sharpie until you get the projection shape that you want. You could then cut out the shape as required. Let me know if you get it to work!

LikeLike

Definitely update us if you design this for cutting from sheet (waterjet, etc.).

LikeLiked by 1 person

Boom. Intriguing models! I’m not a big on the math part, but I have a decent sized printer to test em out. So blender crashes at startup every time on my x64 (even the older versions) so I converted the .blend file to .obj with an online converter http://www.greentoken.de/onlineconv/ . Took the .obj to Meshlab and picked only the panda model to lessen the memory burden on my ol faithful (and my good friend is a big fan of pandas) and exported it to .STL. Then took the model to Nettfab to clear out any erros on it, but for some reason the autorepair cannot repair the model correctly as it infills the part after exporting and entering slic3r. Maybe if you’d have the original file as an .obj I could test it out again?

LikeLike

Thanks, and great that you want to have a go at printing! I’ve made the panda model a bit thicker in case that was the problem, and uploaded the .stl here:

https://www.dropbox.com/s/inedal3n3tj75ty/Panda.stl?dl=0

and the .obj file here:

https://www.dropbox.com/s/rmhap4gjf0wjtm4/Panda.obj?dl=0

LikeLike

Cool! I’ll test em out asap.

LikeLike

Yeah, the panda’s printing at the moment. Could you upload the other ones with thicker walls aswell? I’ll paste some photos tomorrow.

LikeLike

Great! I look forward to seeing them. The other 3 are in .stl format here:

https://www.dropbox.com/s/y60dcunix1ur99m/Geometric.stl?dl=0

https://www.dropbox.com/s/rhnx0zmfmgxo6x5/Flower1.stl?dl=0

https://www.dropbox.com/s/r80pknvu9t6ktdn/Flower2.stl?dl=0

LikeLike

Wait, I was promised stereographs. Get back with the 2-color or polarized projection through reflective masks next pumpkin harvest, then…

LikeLike

Hi! I’d be interested in making a prototype of this via milling and assembling instead of 3D printing, given the tools I have access to. That said, would you be interested to look into the difference in projection comparing the lampshade of which extrusion is parallel to ground vs. normal to the surface vs. parametrized extrusion? 🙂 thanks!

LikeLike

Hi Nadia, I’m afraid I don’t quite follow. When you say extrusion, do you mean extruding the flat mesh to give it some thickness?

LikeLike

Hi, yes that is what I meant, but those variations would only affect the subtle detail of the shadows outline on the ground.

LikeLike

Ah, I see. I did think about this effect, as using the Blender ‘solidify’ modifier extrudes normal to the surface. As you say, this isn’t in the direction of the light rays so will cast some ‘wrong’ shadows. It would be possible to do the mesh extrusion in Matlab too and avoid this problem, but it isn’t something I’ve gotten around to yet, only because I’d have to work out which mesh edges are external vs. internal. This should be possible as I know the location of the holes before warping, I’d just need to keep track of the external mesh edges after warping and generate the new faces and vertices manually.

LikeLike

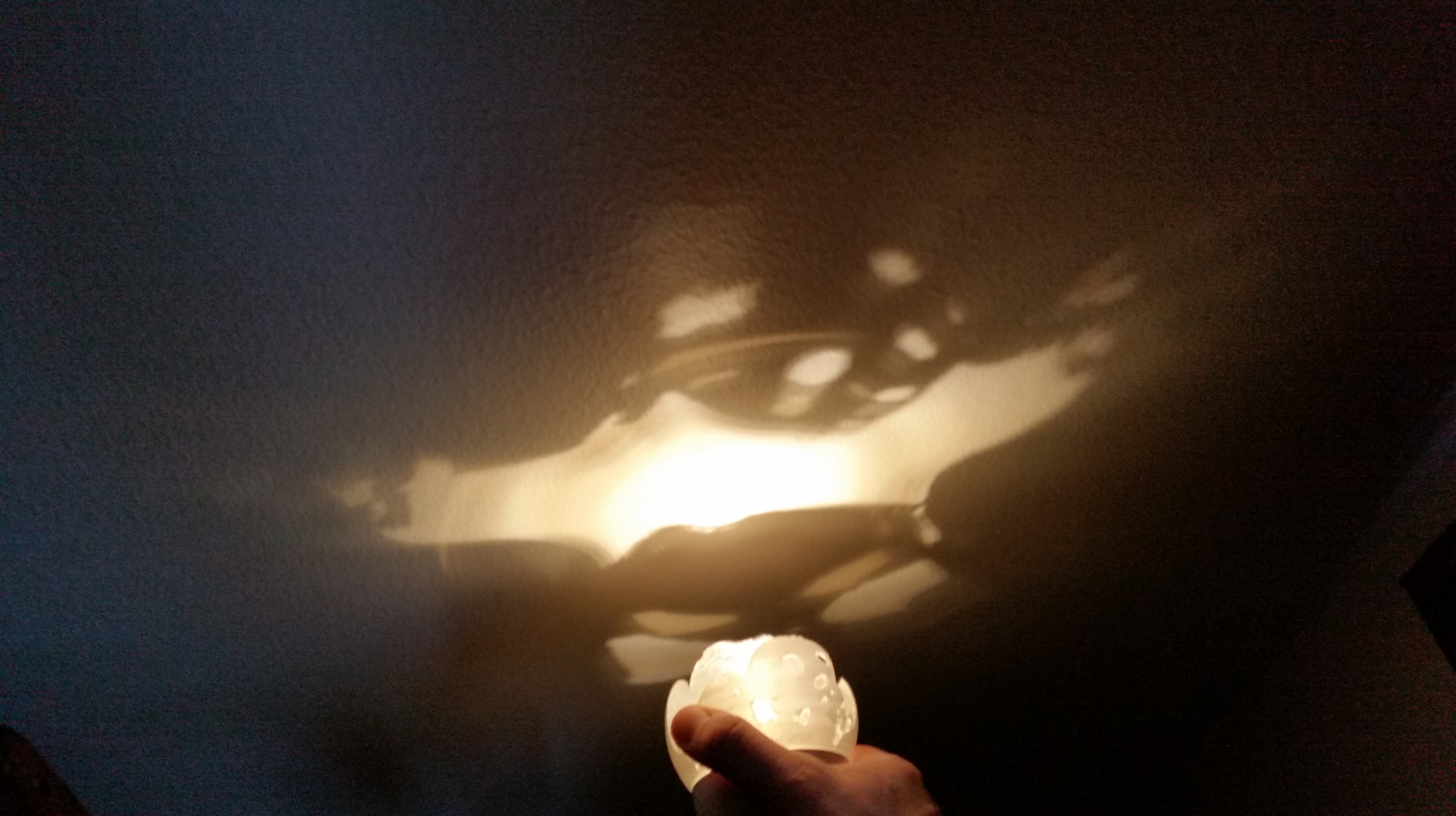

Here’s some pics of the printed panda! I turned the model 180 degrees on x-axis to get a better base for printing. Scaled the original model 1400% and used 0.1mm layer resolution. Took about 4 hours. Even thou the peak of the print got a bad print quality otherwise the print went nicely and the configurations on the shades’ surface you made are nicely visible.
