Fear of heights

I am a short man. I have an even shorter girlfriend. Odds are, any offspring would be short. Odds are, their partners would be similar or smaller in height, especially if they are male. Does this mean I am destined to be the heir to a slowly shrinking troglodyte race, my pristine DNA squirted from troll to troll until it degrades to a corrosive, fetid broth? Let’s put the thesaurus away and have a look.

The model

On average, men are taller than women, though the heights of both populations approximately follow a Gaussian distribution

P(h) = \exp(-(h - \mu)/2\sigma^2)

where P(h)dh is the probability of finding a person with height between h and h + dh. For the British population, the relevant parameters (in metres) are around

\mu_m = 1.75
\mu_f = 1.62
\sigma_m = 0.23
\sigma_f = 0.18

where I’ve used m and f to distinguish males and females. These define two probability distributions P_m(h) and P_f(h). The ratio between the average heights of the two populations is then r = \mu_m/\mu_f \approx 1.08. I’d like to model the evolution of these populations through their pairwise interactions (higher-order effects are neglected, notably the infamous three-body problem).

For the sake of simplicity, let’s consider a simple case. A single man and a single woman meet, producing a single male and single female. The parents are then deleted from the population, so the time evolution of the population depends on how the heights of the parents (h_m, h_f) are transformed to the heights of the children (h'_m, h'_f). Suppose

h'_{m/f} = \frac{1}{2}(h_m + h_f)

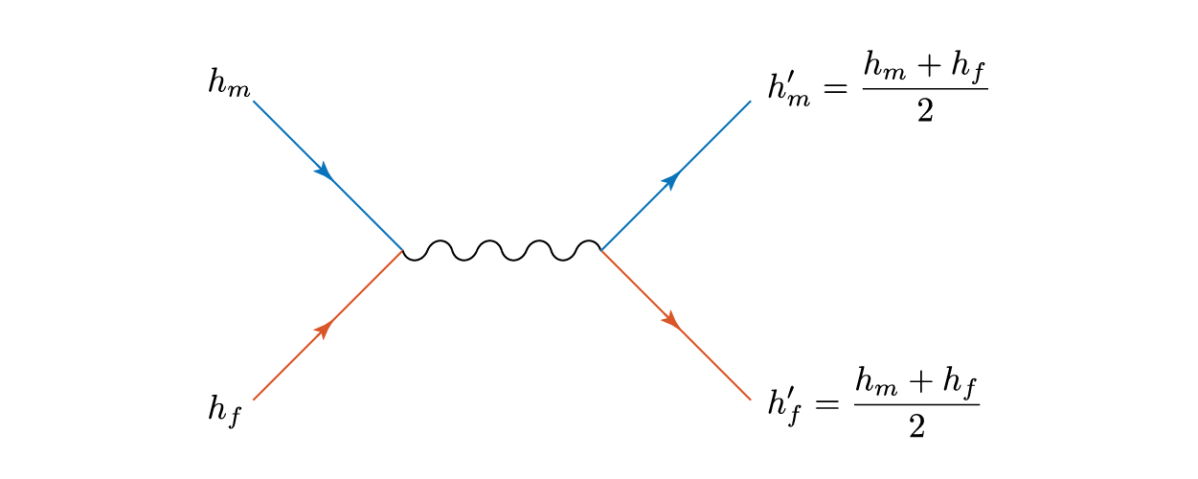

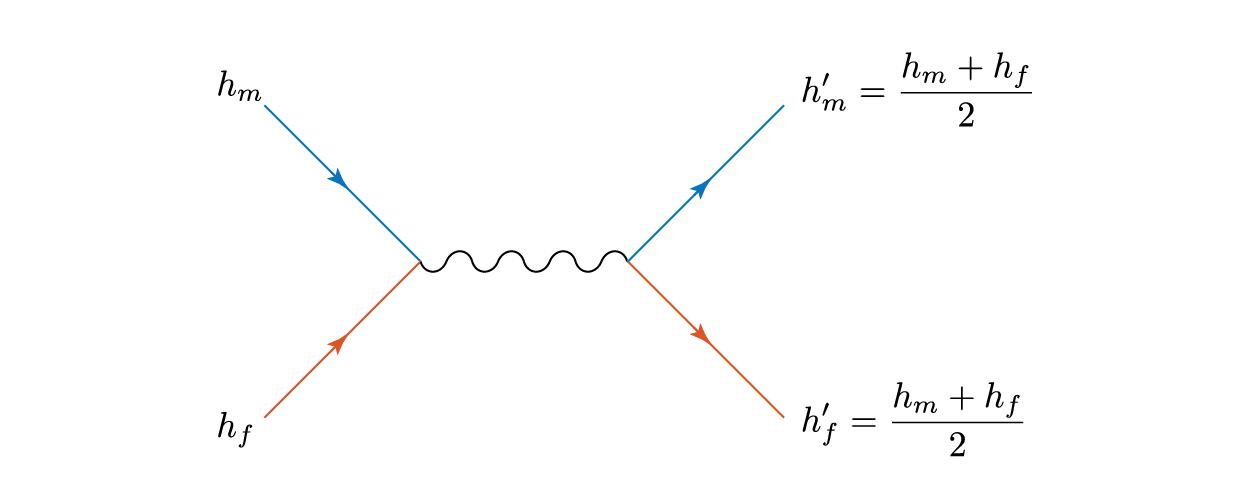

then both children are the same height – the average of the two parents. Let’s physics this up a bit, as we have two things interacting and effectively ‘scattering’ away with different properties. We can represent this as a Feynmann diagram, where blue represents men and orange women (yes, even the default Matlab plot colours suffer from tired gender stereotypes).

Setup

The squiggly line represents the, er, interaction, and the childish amongst you can reinterpret gluons or propagators as you wish.
Total height is conserved in this process, and there is an effective transfer of height

\Delta h = \frac{h_f - h_m}{2}

from the man to the woman.

Equal height children

What effect does this have on the population? I simulate a large number of these interactions, randomly picking parents and adjusting their properties as above:

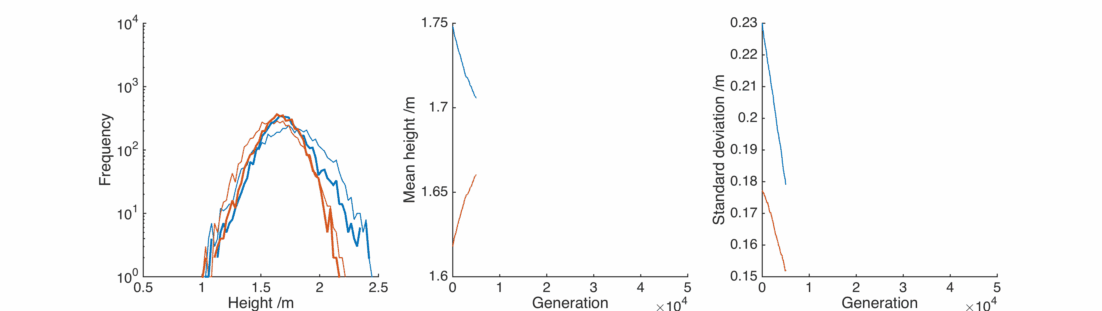

Ris1

This doesn’t look good – very rapidly the male and female populations converge to the same average height, and the variance of heights within each population is dropping towards zero. This isn’t surprising – if you replace two quantities by their average, the distribution will be losing people at the edges and gaining them in the middle.

Asymmetric children

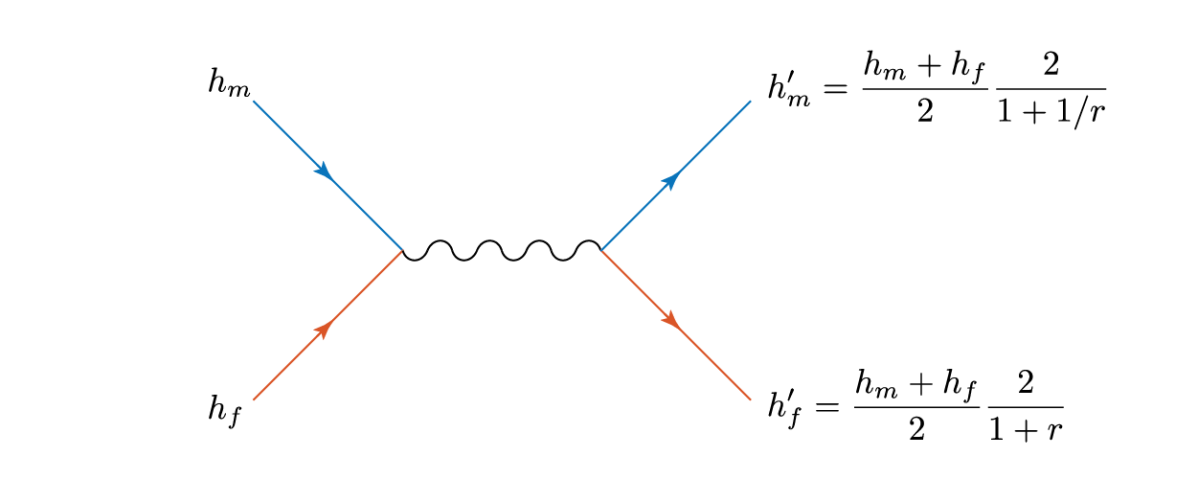

Let’s adjust our scattering procedure with the assumption that the male child will tend to be taller than the female child, as we observe in the real population:

Setup2

To see that this is appropriate, consider the average height of the male child averaged over the population (where \langle\rangle represents the averaging operation)

\langle h_m'\rangle = \frac{1}{1 + 1/r}(\langle h_m\rangle + \langle h_f\rangle)

which by definition of the mean heights

\langle h_m'\rangle = \frac{1}{1 + 1/r}(\mu_m + \mu_f)

So if we take that \mu_m = r\mu_f then

\langle h_m'\rangle = \frac{r+1}{1 + 1/r}\mu_f = r\mu_f

and the average male child height should follow the same ratio on average. What does this do to the population evolution then?

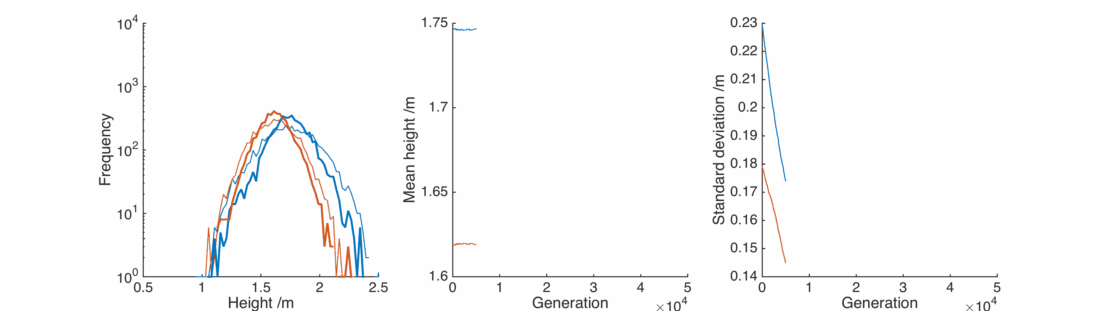

Rnot1

Great, the average heights stay pretty much exactly the same as we wanted. By adjusting the r parameter it is also possible to force the population to evolve however you like. For example, what if male children were 50% taller than female children?

Ris1-5

However, the populations still don’t resemble what we observe in the real world. The repeated averaging process homogenises the populations in an unrealistic way.

Random children

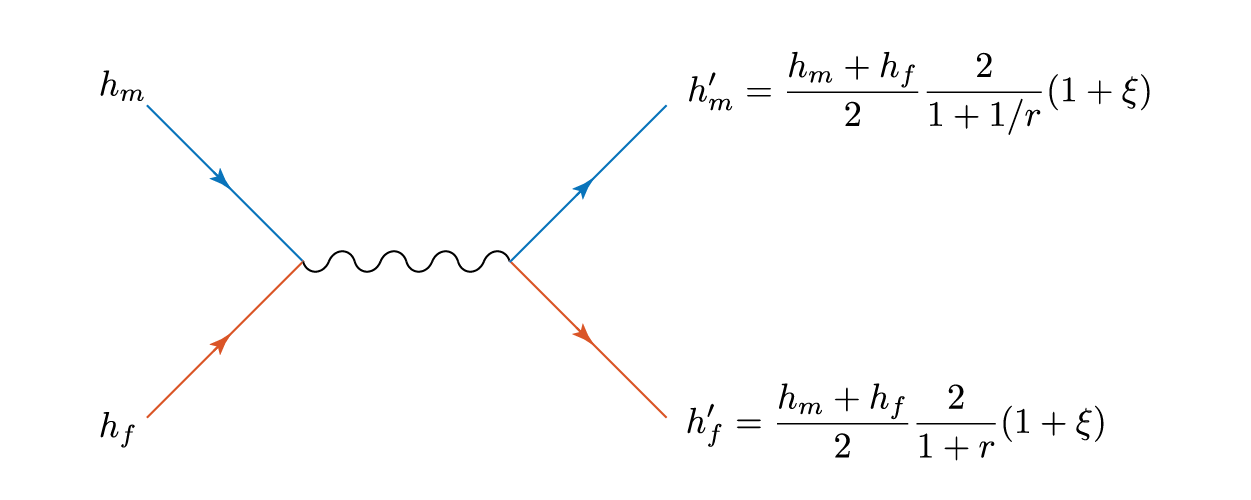

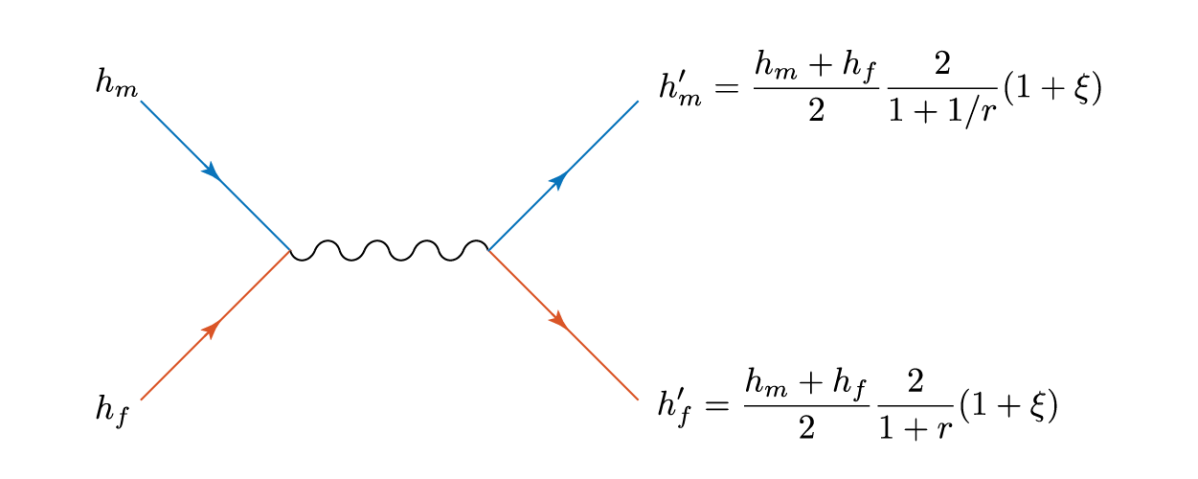

What we need is a bit of randomness – adjust the scattering procedure so that it reads

Setup3

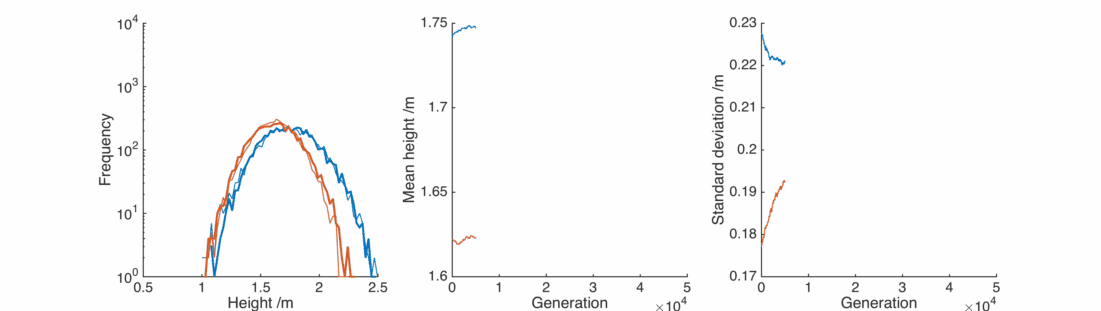

where \xi is a small random number. Unfortunately height is no longer exactly conserved, but we’ll manage. With \xi limited to \pm 0.15 the population evolution looks like this:

ChildVar15

This is nice, with a bit of gender bias in child heights and a sprinkling of randomness we can reproduce the observed population, and it’s relatively stable.

Interaction probabilities

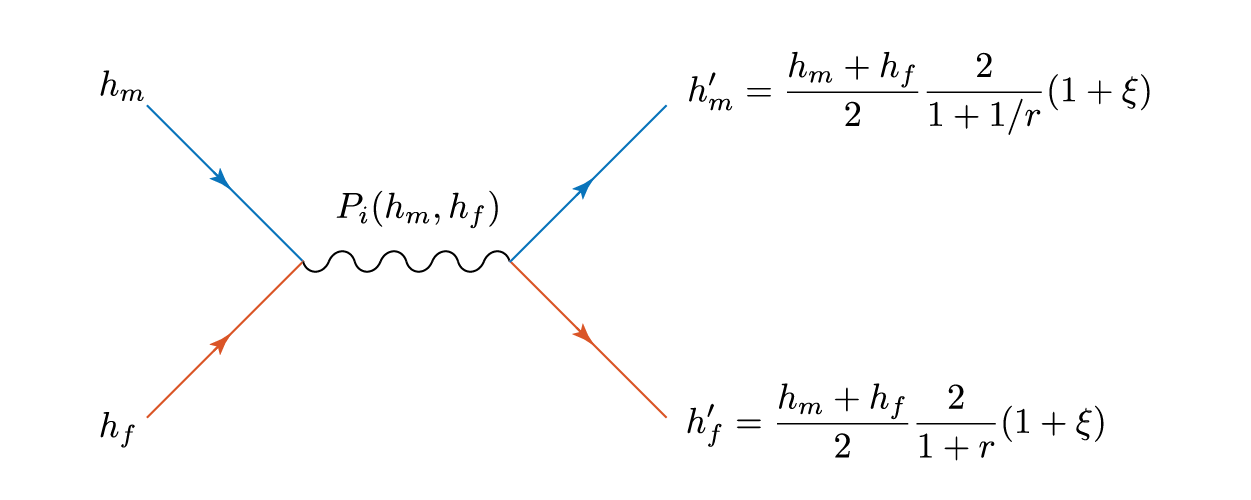

To start answering the question I posed at the beginning, we’ll need to adjust the final part of the scattering process – the likelihood of interaction P_i(h_m, h_f):

Setup4

This is, in general, a function of the heights of the two prospective parents. It could take a number of forms. For example, what if a couple couldn’t tolerate a height difference of more than, say, \sigma centimetres? Then

P_i(h_m, h_f) = \exp( -(h_m - h_f)^2/2\sigma^2)

would encourage pairings where the heights of the parents are similar, and discourage pairings with a large different in height. What does this look like in practise?

Gaussian

Here the real winners are short men and tall women, whose populations significantly overlap. They breed themselves out of existence, leaving a lonely population of tall men and short women, each repulsed by the other and breeding slows down.

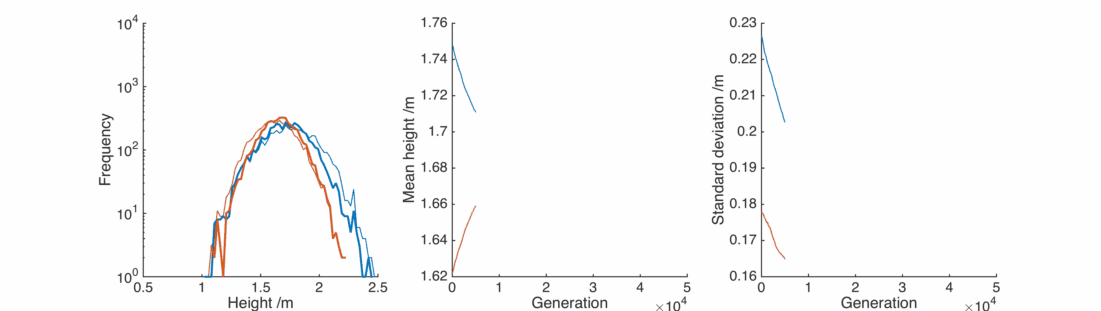

This is unrealistic, what about the situation where women will tend towards taller men? Here, set P_i = 0 for h_m < h_f and the evolution looks like:

Absolute

In this case the situation is reversed, somewhat counter-intuitively the female population gets taller as it preferentially interacts with taller men. The male population gets shorter as the taller section breeds itself away, In general everyone is pretty happy, except for the initial male population below 1.25 m or so.

PDE model

The above procedure is pretty simple to conceptualise and implement. However, it can be quite slow, especially when the aggregate probabilities of interaction are low. There is another way to look at this process, motivated by physics (naturally).

It is often natural to consider the evolution of a distribution function of some species under the influence of internal and external forces. In plasma physics, for example, the distribution function is that of a particle species over position and velocity. The Vlasov equation then dictates how this distribution function evolves. An important component is the description of scattering processes – when two particles collide they change their velocities, and therefore the shape of the velocity distribution function is changed. One can show that the distribution function is unchanged by scattering (on average) when it attains a Maxwell-Boltzmann form, i.e. is in thermodynamic equilibrium.

It is interesting to consider how our two distribution functions interact through scattering, and under what conditions the populations might be stable. I’ll just think about the simple case here when \xi = 0.

The value of P_m(h_m') is increased when a component at h_m ‘scatters’ into it. It is decreased when a component h_m' is `scattered’ away. The transformation from (h_m, h_f) to (h'_m, h'_f) in the scattering process has zero Jacobian, so is only parametrised by a single degree of freedom. In this case we fix h_m and consider the range of h_f which allow the right scattering, i.e.

h_m = h_m'\frac{1+r}{r} - h_f

In the range h_f, h_f + dh_f, the number of available women for the specified interaction is P_f(h_f). The number of men is P_m(h_m'\frac{1+r}{r} - h_f). The total number is then found by integrating over the distribution of h_f:

\int P_f(h_f)P_m\left(h_m'\frac{1+r}{r} - h_f\right)dh_f

The rate at which P_m(h_m') is depleted is simply the number of men there, i.e. P_m(h_m') (assuming equal probability of interacting with any women, and that the number of women is conserved).

Overall then, we have

\frac{\partial P_m(h'_m)}{\partial t} = \int P_f(h_f)P_m\left(h_m'\frac{1+r}{r} - h_f\right)dh_f - P_m(h'_m)

and analogously for the female population

\frac{\partial P_f(h'_f)}{\partial t} = \int P_m(h_m)P_f\left((1+r)h'_f - h_m\right)dh_m - P_f(h'_f)

By solving these integro-differential equations numerically, we get the same behaviour as was seem earlier, namely narrowing of the two populations around their respective means.

Hand-waving alert

Notice that the equations above take the form of convolutions. If we Fourier transform with respect to the primed variables then, we have

\frac{\partial\tilde{P}_m}{\partial t} = \tilde{P}_m(\tilde{P}_f - 1)

\frac{\partial\tilde{P}_f}{\partial t} = \tilde{P}_f(\tilde{P}_m - 1)

(neglecting some constants and lots of rigour). A non-trivial stable solution then arises when the Fourier transform of the two distributions is 1, or when the distributions themselves tend to a delta-function. This is the limiting behaviour we observe in numerical simulation.

I’m not comfortable enough with this technique to take it much farther though, and would therefore welcome corrections or pointers to useful resources.
